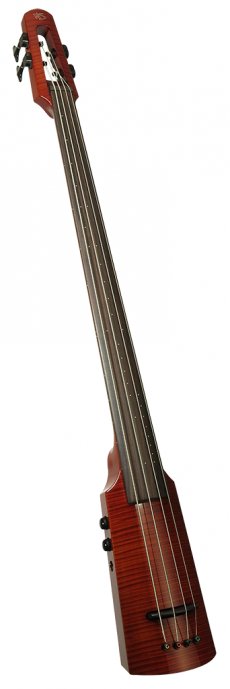

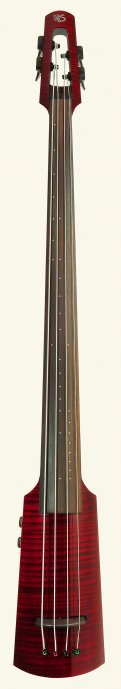

NSdesign WAV4 Omni Bass

Popis

Ned Steinberger Omni bass, čtyřstrunný, pasivní elektronika, přepínač pro hru smyčcem nebo pizzicato, barva: Transparent Red lesk, krk a tělo javor, hmatník Rosewood, měkké pouzdro - gigbag

Specifications

WEIGHT: WAV4 - 3. 2 kg (7 lbs. ); WAV5 – 3. 23 kg (7. 2 lbs. ).

SCALE LENGTH: 86 cm (34")

STRINGS: 4 string EADG; 5 string BEADG or EADGC. The Omni Bass can also be tuned in fifths, for fingerings that are more natural for the cellist seeking enhanced bass range: CGDA (low to high in 5ths) for 4 string, or CGDAE for 5 string.

BODY/NECK: Solid, straight grain maple neck and body. Flame maple face on all colors: Amberburst, Trans Red, and Trans Black.

FINGERBOARD: Hand-graduated, asymmetric. Intonation referenced with cascading dot markers & side dots. The 34" scale length of the Omni Bass is the same as standard electric bass.

TransRadius PROFILE: The fingerboard radius at the nut is 9-1/4 inches. At the end of the fingerboard near the bridge, the radius is 2 inches.

TRUSS ROD: Two-way truss rod, accessible at nut.

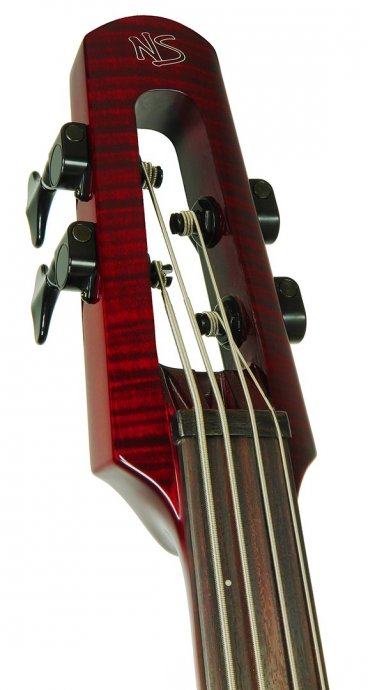

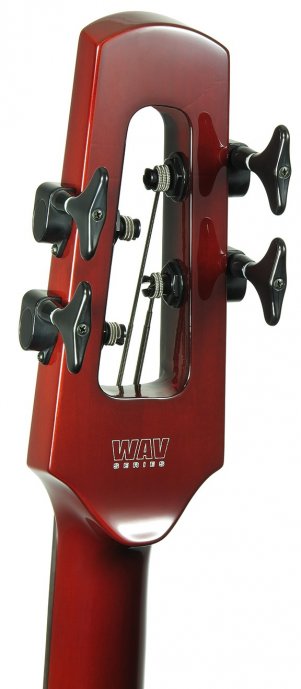

TUNING HARDWARE: 12:1 ratio, fully encased worm gear tuners, black finish.

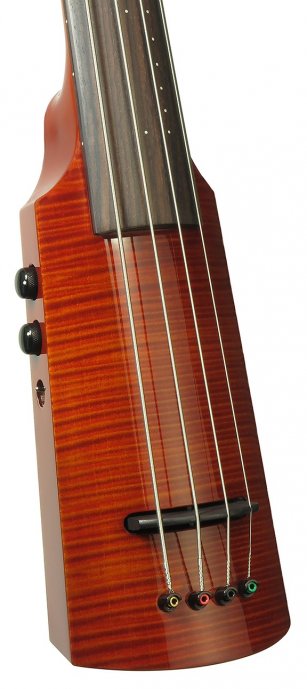

BRIDGE PICKUP: The Polar directional piezo pickup system responds selectively to either vertical vibration (for the sustained plucked sound, like an electric bass guitar), or lateral vibration (for dynamic bowing, and a percussive plucked sound).

ELECTRONICS & CONTROLS: Passive circuit with high impedance output, no batteries required. Volume control, tone control (treble roll off) and a switch to select between Arco and Pizzicato mode.

PERFORMANCE SUPPORT SYSTEMS

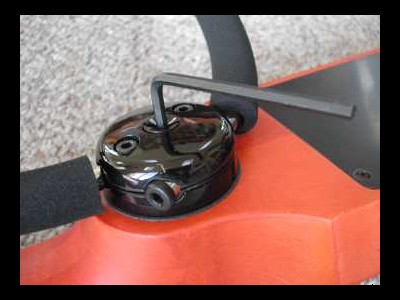

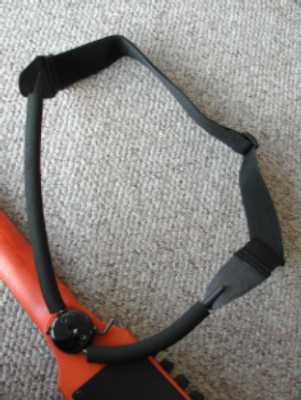

BOOMERANG STRAP SYSTEM: This standard support system has a pivoting friction hub that holds the instrument firmly in place close to the body. Attached with a guitar style strap to its two support arms, the system allows the instrument to be moved into virtually any position in relation to the hands and body as it is played. Weight is . 45 kg (1 lbs. ).

FRAME STRAP SYSTEM: This optional accessory is a lightweight frame structure that allows full mobility to perform in standing or upright position, holding the instrument out from the body similar to the reference in traditional positioning. The system is supported by a single guitar style strap extending over the left shoulder. Weight is 0. 68kg (1. 5 lbs. ).

WAV/NXT TRIPOD STAND: Optional, black painted steel, fully adjustable, self-standing tripod design. Folds for easy storage and fits into the WAV Omni Bass gig bag. Weight is 2. 7 kg (6 lbs. ).

CR TRIPOD STAND: Optional, fully adjustable steel tripod stand. Weight is 3. 6kg (8 lbs. ).

BASS END PIN: The optional Bass End Pin Stand offers full freedom of movement. Height, tilt and "right bout" angle are fully adjustable providing a more conventional feel. Weight 3 kg (7 lbs).

BASS END PIN STAND CONVERSION KIT: To hold the instrument upright for on-stand performance or when not in use, the Bass End Pin Stand can be attached to the CR Tripod Stand (not compatible with the WAV/NXT Tripod Stand) using the optional End Pin Stand Conversion Kit.

TRANSPORT

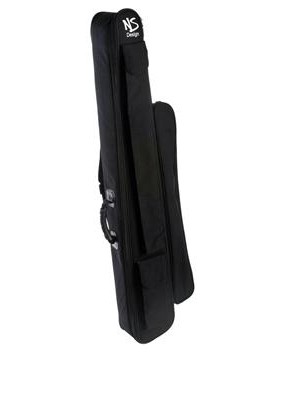

GIG BAG: A padded gig bag is included as a standard accessory. It has a stand compartment, bow compartment, charger and accessory pocket, handle and adjustable strap. Loaded weight is 6 kg (15. 2 lbs. ) including a stand, and it fits in the overhead luggage compartment of most commercial aircraft.
