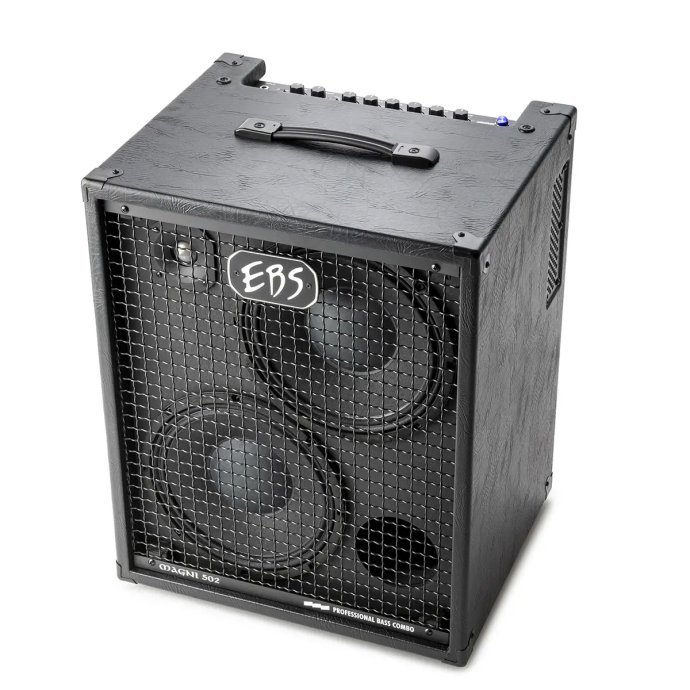

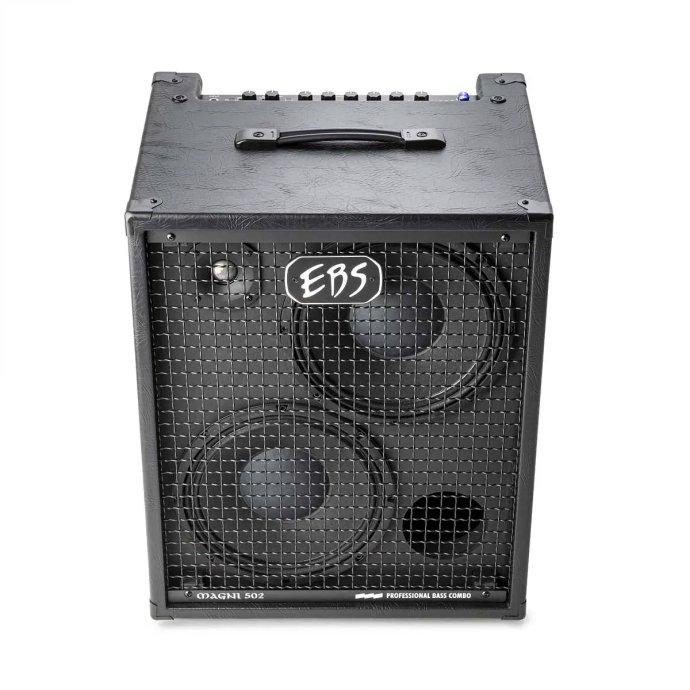

EBS MAGNI 502/210

Popis

MAGNI 500-210, basové kombo 500W, 2x10" + Tweeter
Power: 500 Watt
Loudspeakers: 2x 10" Neodymium Speakers + tweeter
Soft-clip design
4-Band EQ with Bright and Notch Filter
Compressor / Limiter
Double bass reflex ports (front and back)
Speaker Twist output for external 4 to 8 ohm cabinet
Balanced XLR output with ground lift
Headphone output
Line-out
Effects loop
Weight: 15,4 kg

Details:
Input Impedance: 1 Mohms // 100 pF
Character Filter:
Low +7 dB @ 40 Hz
Mid -2dB@ 800Hz
High +3 dB @ 10 kHz
Comp/limit:
Gain 0 dB
Attenuation max 24 dB
Compression Ratio max 3:1
Attack (80%) typ. <10 ms
Release (80%) typ. 100 ms
Bass Filter:
Type 12 dB/oct. Shelving
Gain Range +/-18dB @ 60Hz
Middle Filter:
Type Bandpass Filter
Frequency Range 100 -6.000 Hz
Gain Range +/-12-15 dB
Treble Filter:
Type Shelving
Gain Range +/-18dB@6kHz
Bright: Type Shelving
Gain Range +15/-0 dB @ 10 kHz
Balanced XLR output:
Output Level Nominal -10dBv
Frequency Response +0/-3 dB 10-20.000 Hz
XLR Connections 1-GND, 2-Hot, 3-Cold
Options GND Lift, Pre/Post EQ
Effect Loop:
Loop Signal Level nominal -10 dBv
Gain Unity (1:1)
Output Impedance 100 ohms
Input Impedance >50 Kohms // 100 pF
Line out:
Output Impedance 100 ohms
Signal Level nominal 0 dBv
Phones out:
Impedance recommended 32 -200 ohms
Power amp:
500 W
External cabinet output:
The minimum Load Impedance of an external cabinet is 4 ohms
Connect via Speakon output jack.
Auxiliary output:
Power Requirements max 500 W
Mains Protection: T2.5A Fuse (230V) T5A Fuse (100/120V)
Cabinet:
Magni 502 - 210:
Configuration: 2x 10" Neodymium Speakers + tweeter
Frequency Response: 45 - 20k Hz
Size: (H x W x D) 56 cm / 22" / 44 cm / 17.3" / 36.5 cm / 14.4"
Weight (total): 15.4 kg / 33.95 lbs
